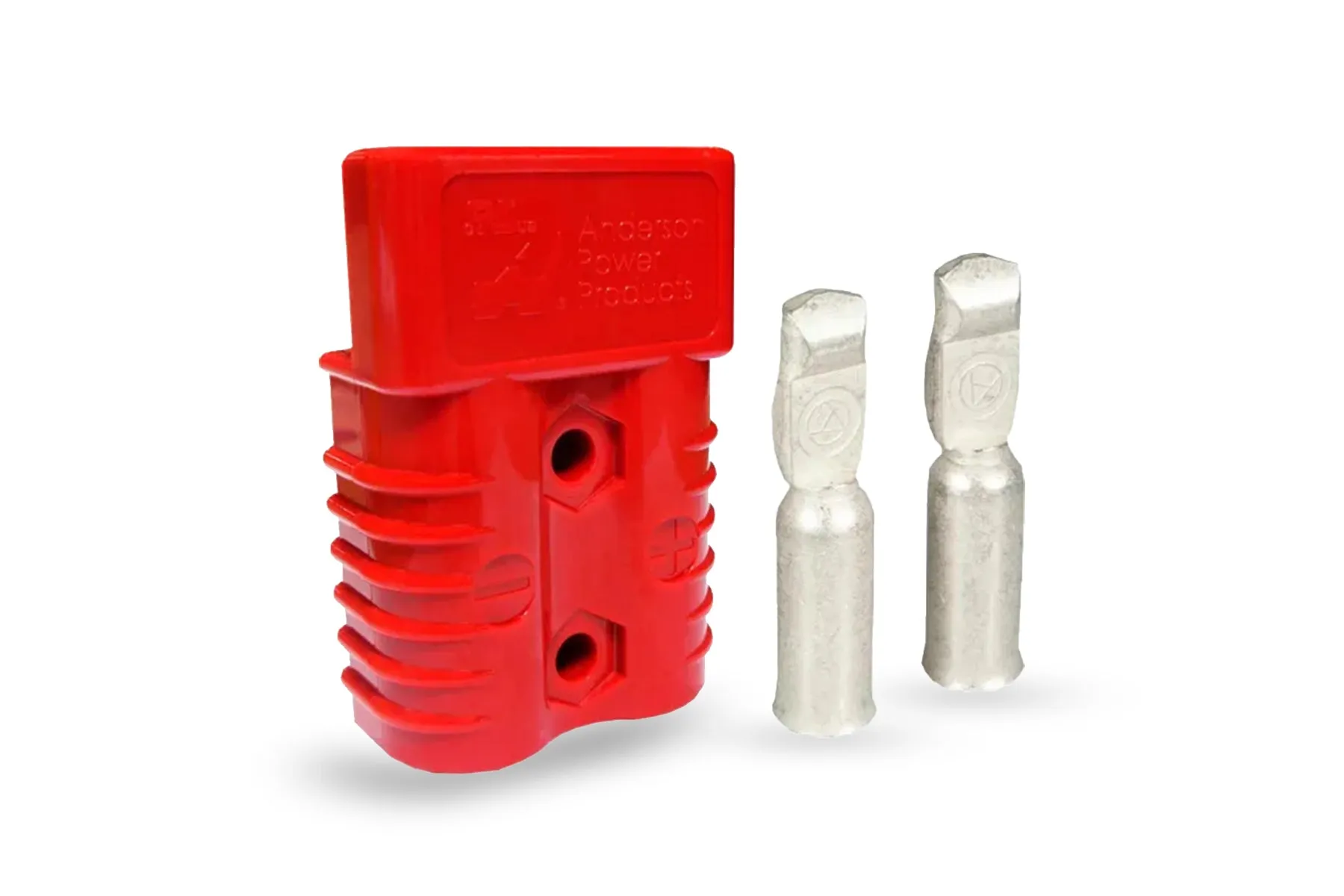

Includes:

• (1) Red 175 Series Connector Plug
• (2) 2G Terminals

Product Description

High current rating, low resistance
The size of the wire a SB contact will accept is the primary limitation of their ability to carry a load. SB connectors will safely handle higher loads or surges, please read the linked data sheets (PDF) for additional information.

The contacts are made of highly conductive silver-plated copper for minimal contact resistance at high currents. The average contact resistance is 500 micro-ohms.

Flat wiping contact system
This system allows for minimal contact resistance at high current. The self-wiping action cleans contact surfaces during connection/disconnection. The contacts are rated at 10,000 no-load connect/disconnect cycles. When two pairs are mated together, it takes approximately 15 pounds of tension to pull them apart.

Stainless steel spring
Good connectors should not lose contact tension under use or vibration. SB connectors use a stainless steel spring which applies 50 lbs. of pressure to hold the silver-plated copper contacts firmly together and maintain constant contact. This is ideal for frequent connect/disconnect cycles. Other cheaper connectors simply depend upon soft copper that eventually spreads apart and becomes loose.

Durable polycarbonate housing
The SB insulated housings use a durable, high impact-resistant, high temperature polycarbonate plastic with a UL94 V-0 flammability rating. The connector design allows air to flow through the housing, assisting in cooling.

Additional accessories include handles, boots and dust covers
A variety of SB accessories are available including weather resistant dust caps, corrosion proof safety boots, connector handle kits, strain relief cable clamps and more.
